INJORA Complete Transmission with 050 Brushed Motor for 1/24 SCX24
INJORA Helical Gear Complete Transmission with 050 Brushed Motor 50T for 1/24 RC Crawler SCX24 Upgrade
Compatible with: 1/24 RC Crawler SCX24
Features:
- Pre-assembled
- The gearbox is equipped with helical gears for smoother transmission and reduce noise.
- Precision CNC Machined
- Aluminum Transmission Housing
- Hardened steel gears for greater durability and longevity
- High torque magnet and rotor motor upgrade for Axial SCX24
Transmission Specifications:
- Housing Material: Aluminum
- Gears Material: Hardened Steel
- Motor Pinion Material: Nylon
- Transmission Gear Set: 51T & 19T
- Spur Gear: 0.5 Mod, 55T
- Pinion Gear: 12T
050 Pro Motor Specifications:
- Turn: 50T
- Rated Voltage: 7.4V
- Total Length: 28.5mm (1.12in)
- Output Shaft Length: 4.9mm (0.19in)
- Output Shaft OD: 1.5mm (0.06in)
- At No Load: Speed: 25500 rpm
Package List:
1 * Complete Transmission with Brushed Motor
AGE & RECOMMENDATION: Not for children under 14 years. This is not a toy.
Prop 65: ⚠️ California Residents Prop 65 WARNINGS: www.p65warnings.ca.gov
Returns & Refunds: Return options may vary by region. Please see our Return & Refund Policy for details.

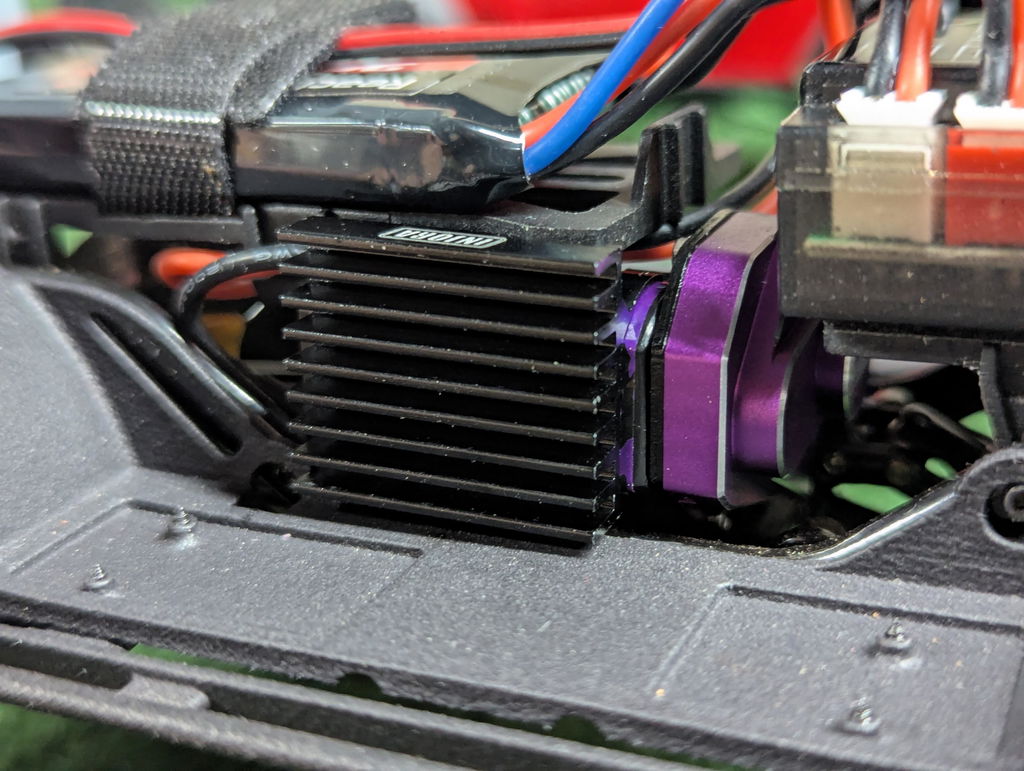

This motor + Transmission combo fits like a glove. You will have to trim the front battery tray support but this in no way, weake s the tray. Fit and finish are excellent. It was great to see the wide metal gears. Runs super smooth and much quieter than stock. The motor cooling fins for perfectly under the battery tray. I am very pleased with this upgrade.
Il 50T ottimo motore
Da best of da best
This combo was the sauce needed to move the additional wait I put on the vehicle. Was a new ride for me lol
Paired with the MB100 ESC, this is a massive improvement over the stock SXC24 motor (which I do like), especially pushing lots of brass. Throw on an S3 50C 450mah battery and my truck became a trail running goat (with over an hour of trail hopping time)!
I think this is a great combo for the price.
Like
i have 4 of these now
In speed 1 it squats hard likenitbhas power but once it gets crawling it just stops. It doesn't react well to minute throttle response and will bind to a stop unless running on speed 3 which is just way to fast for crawling.
Seems like a bulletproof transmission. I really like the helical gears! Quiet for a steel gear transmission. I use it with the underdrive gears in the axles, so it has a ton of power now. Its great if you run the heavier injora wheels. I just wish they did a version for 1:10 lcg crawlers, with steel helical gears.
All in all, I do recommend this!
Does this motor work with the AX24v
Not compatible.
Do you have to run this motor? Or can you phrase to brushless with this transmission and if so which brushless system?
No, it's brushed.
Do I need a different esc or is this plug and essentially. With the exception of installing it of course
It is compatible with the stock ESC.
Will this work on ax24?
Not compatible.
Do i need lcg chassis to run the injora 050 motor and transmission combo?
Bonjour j ai acheté ce setup et j aimerais trouver des pignon 12 hélicoïdale avec vis comme le pignon 11 trx4m viper
Do i need lcg chassis to run the injora 050 motor and transmission combo?
i got a transmission do i need to oil it for my scx24?
Will the purple viper motor work on this trans?
Will the purple viper motor work on this trans?
Actually you can. Just make sure to run a straight cut spur gear that matches the pinion. I'm currently bolting a fat viper to this transmission as we speak. If you're gonna give advice on the hobby be a little more in depth with people.
Does the transmission come pre-lubricated or do I have to lubricate it myself before installation?
Can I run my stock spektrum 2in1 esc with the injora motors or do I need injora esc and receiver to run the upgraded motors? Tia
How is this different from the SKU SCX24-173?
There is a difference between Cover Material and Pinion Gear.
Is there a way to underdrive this transmission?
